深联槽式桥架

 槽式桥架

    CHANNEL TYPE CABLE BRIDGE

      槽式桥架是一种全封闭型电缆桥架,用于铺设计算机电缆,通讯电缆,热电偶电缆及其它高灵敏系统的控制电缆等,它对于控制电缆的屏蔽防干扰和重腐蚀环境中的电缆防护有较好的效果，

      Channel Type Bridge is a kind of flly-chosed bridge,mainly used in laying of computercable,communication cable thermocouplecable and other control cables for high sensitivesystem. It has good advantage in shielding interference of control cables andprotecting cables under heavy corrosion.

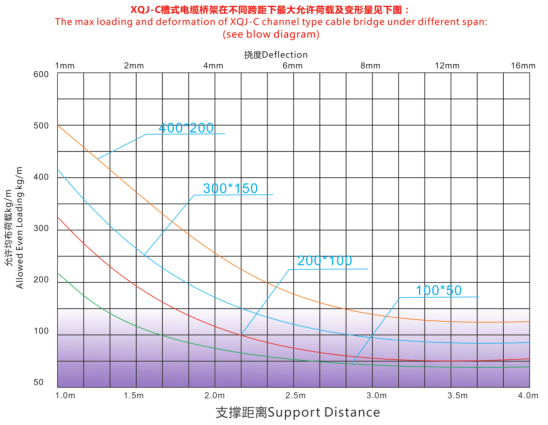

      XQJ-C槽式电缆桥架在不同跨距下最大允许荷载及变形量见下图:

      The max loading and deformation of XQJ-C channel type cable bridge under dfferent span:

      (see blow diagram)
